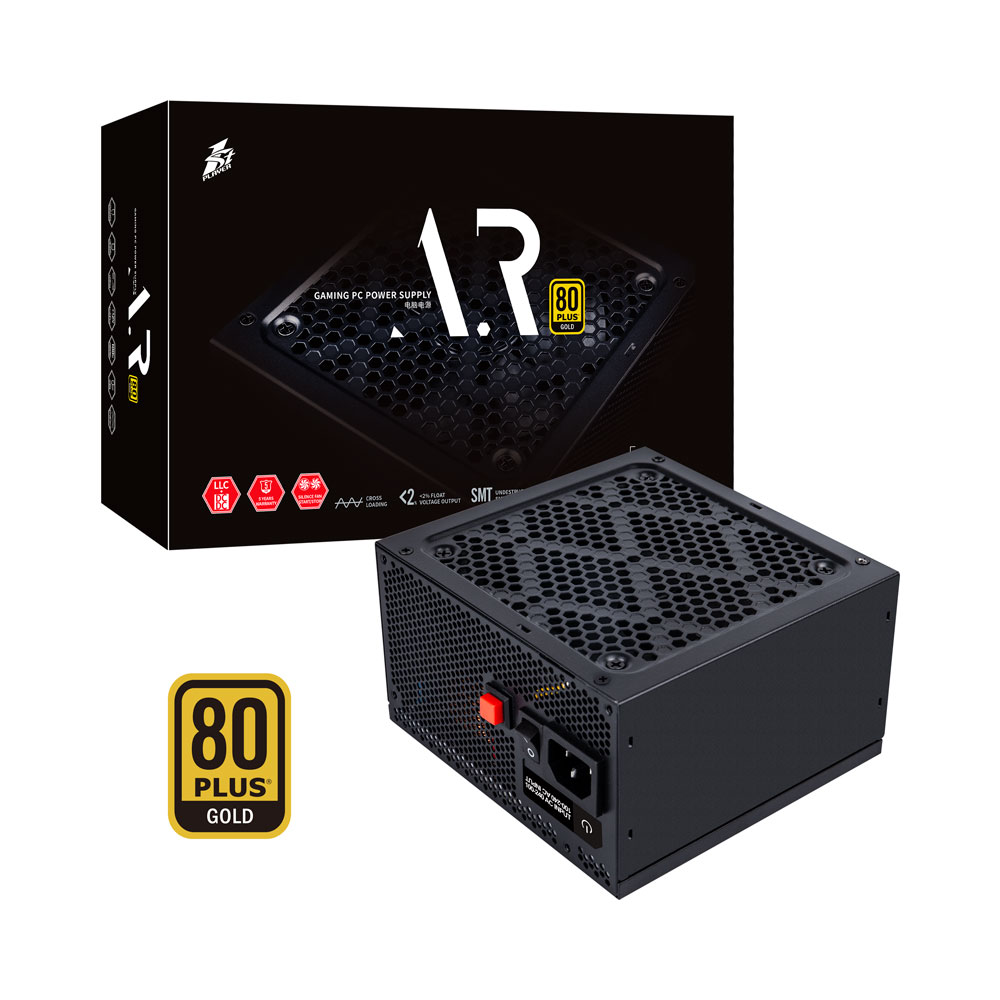

Location: Home > POWER SUPPLY > 80 Plus Gold > AR 5.5/6.5/7.5 POWER SUPPLY
Description
Model | PS-550AR/PS-650AR/PS-750AR |
Modular | Non-Modular |
Certifications | 80 PLUS GOLD |
Dimensions(L*W*H) | 140*150*86 MM |
Warranty | 5 years |
Input Voltage | 100-240 VAC |
Input Current | 10A MAX |
Efficiency | 80 PLUS GOLD,92.4% at typical loading |
Output Capacity | 550/650/750 W |
Input Frequency | 50-60Hz |
PFC | Active PFC |
Net Weight | 2.0kg |
Gross Weight | 2.49kg |
Fan Size | 120MM Hydraulic Bearing fan |
Protections | UVP, OVP, OPP, SCP, Lightning Protection |
Operation Temperature | 0~40℃ |
MTBF | 100,000 hours |
Circuit Structure | LLC + DC-DC |
Regulatory | CE/FCC/C-Tick/ROHS/CCC/EAC/cTUVus/IEC |
